Solar SubmersiblePump System
Replace expensive diesel pumps with clean solar power. Irrigate your fields for free — no electricity bill, no diesel cost. The PM-KUSUM scheme offers up to 90% subsidy for farmers.
Solar-Powered Water Pumping for Farmers

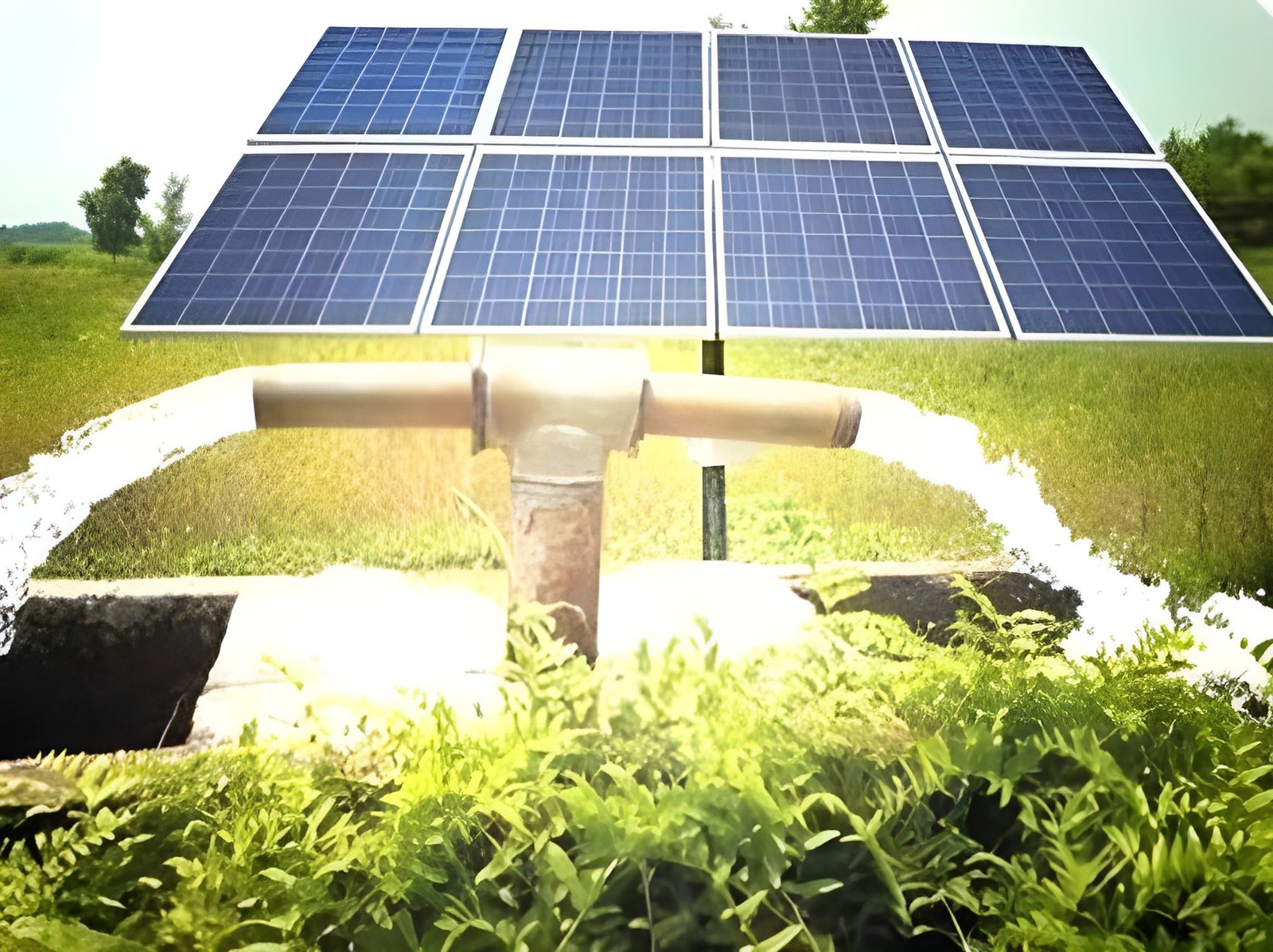

A solar submersible pump system replaces diesel or grid-powered pumps with solar panels that directly power a submersible motor placed deep inside a borewell or open well. It lifts water to the surface for irrigation, drinking water supply, or livestock.
Under PM-KUSUM Component C, the government covers up to 90% of the cost — farmers pay only 10%, and in many states even that 10% comes as a soft loan from NABARD or state banks.
How a Solar Pump Works
Sunlight to water — in four simple steps
Solar Panels
Absorb sunlight and convert it to DC electricity. Mounted on a MS frame near the borewell.
VFD Controller
Variable Frequency Drive converts DC to AC and regulates pump speed based on sunlight intensity.
Submersible Motor
AC power drives the motor inside the borewell, pulling groundwater up through rising pipes.
Field Irrigation
Water is delivered to drip/sprinkler lines or storage tanks for irrigation and drinking.
PM-KUSUM Component C Subsidy
Pradhan Mantri Kisan Urja Suraksha evam Utthaan Mahabhiyan
Central Govt
Directly from Ministry of New & Renewable Energy (MNRE)
State Govt
State DISCOM or Agriculture Dept top-up (varies by state)
Farmer Share
Your out-of-pocket cost — often funded by NABARD soft loan
Eligibility Criteria
- Individual farmers with agricultural land
- Farmer Producer Organizations (FPO)
- Water User Associations & Panchayats
- Cooperatives and Self Help Groups
- Borewell/open well already available or planned
- No existing grid-connected pump at same location
- Valid Aadhaar + bank account for farmer
- Land ownership or long-term lease documents
Solar Pump Packages & Pricing
All prices after 90% PM-KUSUM subsidy. Pre-subsidy price shown for reference.
| Pump Capacity | Solar Panel | Water Output/Hr | Borewell Depth | Pre-Subsidy Cost | After 90% Subsidy | Ideal For |
|---|---|---|---|---|---|---|
| 1 HP | 900W | 18,000 L | 60–80 ft | ₹1,20,000 | ₹12,000 | Kitchen garden, small plot |
| 2 HP | 1,800W | 36,000 L | 80–120 ft | ₹1,80,000 | ₹18,000 | 1–2 acre farm |
| 3 HP | 2,700W | 54,000 L | 100–150 ft | ₹2,50,000 | ₹25,000 | 2–3 acre farm |
| 5 HPPopular | 4,500W | 90,000 L | 150–200 ft | ₹3,80,000 | ₹38,000 | 4–5 acre farm |
| 7.5 HP | 6,750W | 1,35,000 L | 200–250 ft | ₹5,20,000 | ₹52,000 | 6–8 acre farm |
| 10 HP | 9,000W | 1,80,000 L | 250–300 ft | ₹6,80,000 | ₹68,000 | 8–12 acre farm |
Farmer Benefits at a Glance
Eliminate Diesel Cost
A 5 HP diesel pump costs ₹50,000–70,000/year in fuel. Solar eliminates this completely from day one.
Reliable Water Supply
No DISCOM power cuts, no fuel shortages. Pump runs whenever there is sunlight — 8 to 10 hours daily.
Zero Carbon Emission
Completely clean energy. No smoke, no noise, no pollution — good for you and the environment.
Low Maintenance
No moving parts in solar panels. Motor service every 3–5 years only. Much simpler than diesel engines.
Income from Surplus Power
Under PM-KUSUM, unused solar power can be sold back to DISCOM where the state allows it, earning extra income.
25-Year Return
After paying 10% cost (sometimes even that is a soft loan), you get free water and/or income for 25 years.
Diesel Pump vs Solar Pump
5 HP pump, 10 hrs/day, 200 days/year comparison
Diesel Pump
Solar Pump
What’s Included in the Package
Solar PV Panels
Monocrystalline PERC panels, 25-year performance warranty from Tier-1 brands (Adani, Waaree, REC).
Submersible Pump Motor
ISI-marked AC or DC motor. Brands: Kirloskar, Grundfos, KSB. Stainless steel body, corrosion resistant.
VFD / Pump Controller
Automatically adjusts pump speed to match solar power availability. Protects motor from dry running.
MS/GI Panel Stand
Hot-dip galvanized mounting structure. Tilt angle optimised for your latitude.
HDPE Rising Pipes
UV-stabilized, pressure-rated pipes for water from pump to surface. No rust, long life.
Junction Box & Wiring
IP65-rated weatherproof box, UV-resistant DC cables, proper earthing and lightning protection.
Ideal Application Areas
Crop Irrigation
Wheat, rice, sugarcane, vegetables — any crop irrigation requirement
Livestock Watering
Dairy farms, goat farms, poultry — reliable daily water supply
Village Water Supply
Community borewells, overhead tank filling for drinking water
Construction Sites
Remote locations with no grid supply where water is needed
Common Questions
Is the 90% subsidy available in my state?
PM-KUSUM Component C is run through state nodal agencies, so the split between Central, State and farmer share and the approval timeline vary by state. We check your eligibility and prepare the application.
How deep a borewell can the pump handle?
Our packages cover roughly 60 to 300 ft depending on HP. During the survey we measure depth and water level and choose a pump with the right head.
Will the pump run on cloudy days or at night?
Output drops in cloud and the pump runs only in daylight. A storage tank lets you use the water at any time.
How long does subsidy approval take?
Typically 4–8 weeks after application, depending on your state agency. We follow up on your behalf.
What maintenance is needed?
Mostly periodic panel cleaning. The pump motor needs service every 3–5 years. A 1-year free AMC is included.
Get Your Solar Pump Installed
We handle the entire PM-KUSUM application and installation process for you
Site Survey
We visit your field, check borewell depth, soil type, crop area, and water requirement.
Subsidy Application
We prepare and submit PM-KUSUM application with all documents to state nodal agency.
Approval (4–8 wks)
State DISCOM/agriculture dept reviews and issues sanction letter with subsidy amount.
Installation
Pump, panels, pipes, VFD installed in 2–4 days by our certified technicians.
Handover & AMC
Full demonstration, operator training, 1-year free AMC, 24×7 support.
Get Your Farm Diesel-Free Today
Get a free site survey and custom proposal — no obligations.
